How Visual HVAC Works

Explore building systems visually with Visual HVAC

Transform existing BAS graphics into immersive operational experiences with a virtual 360° walkthrough of real mechanical spaces. By connecting users directly to equipment and layering in real-time and historical data, it delivers a richer, more dynamic view of system performance and context.

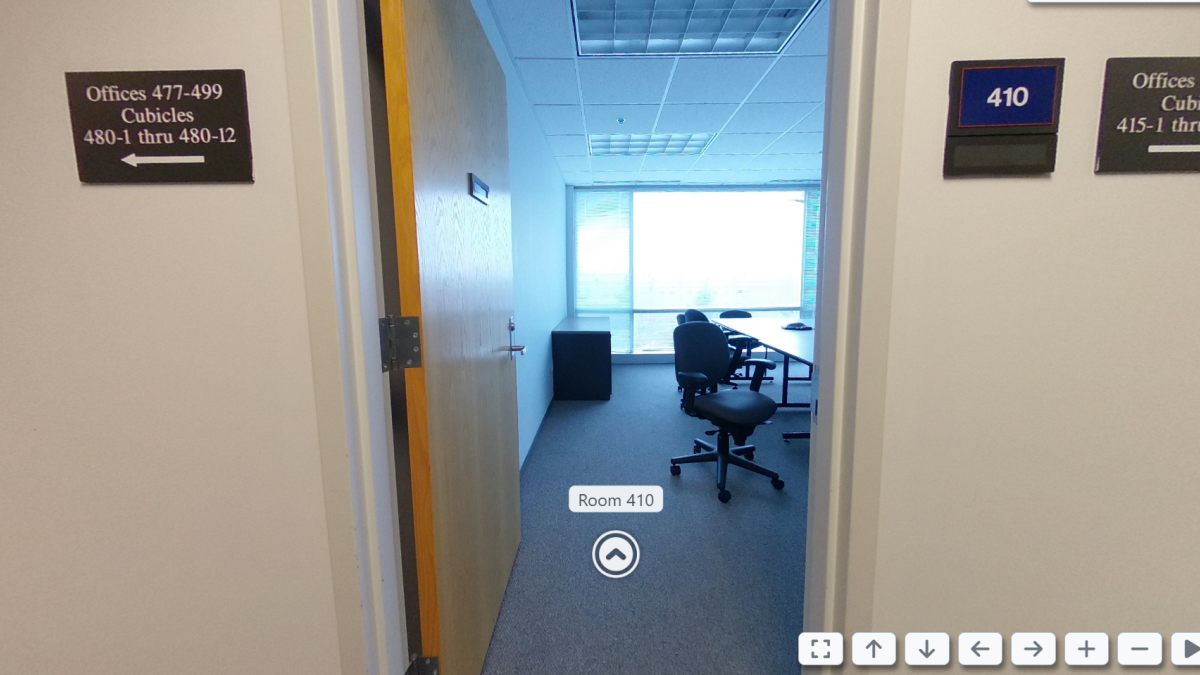

  • Navigate Scene-to-Scene

    Navigate Scene to Scene

    Travel through a building with Link Hotspots.

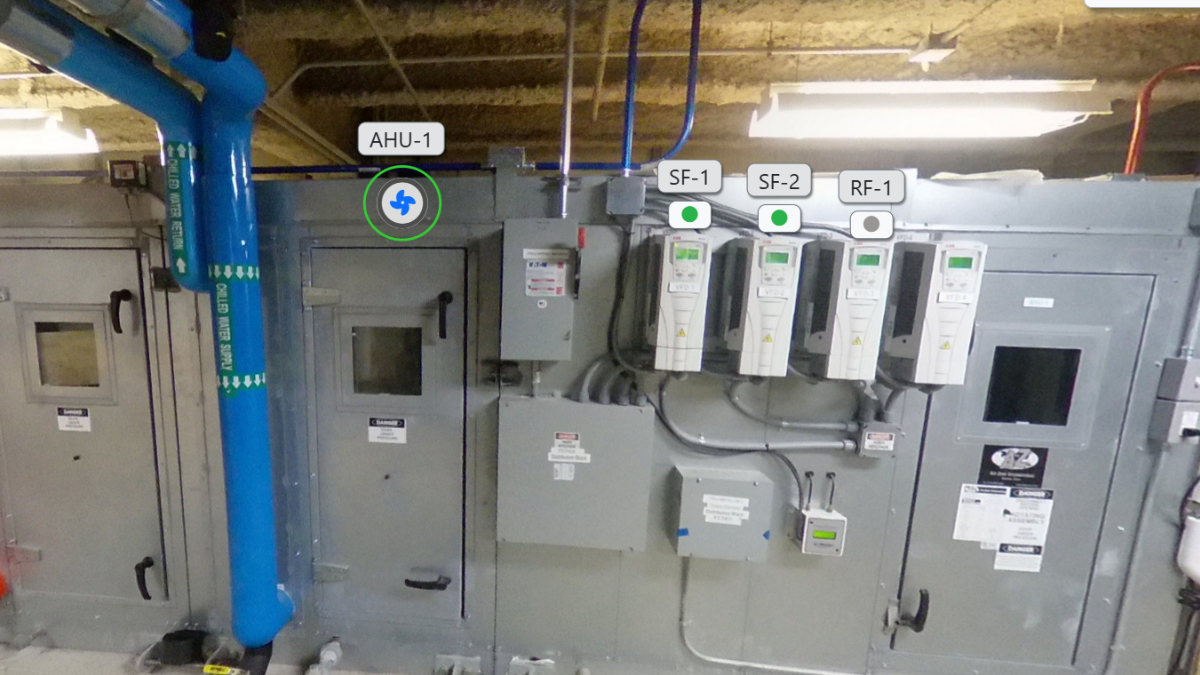

  • Equipment Tagging

    Equipment Tagging

    Label equipment for reference and navigation.

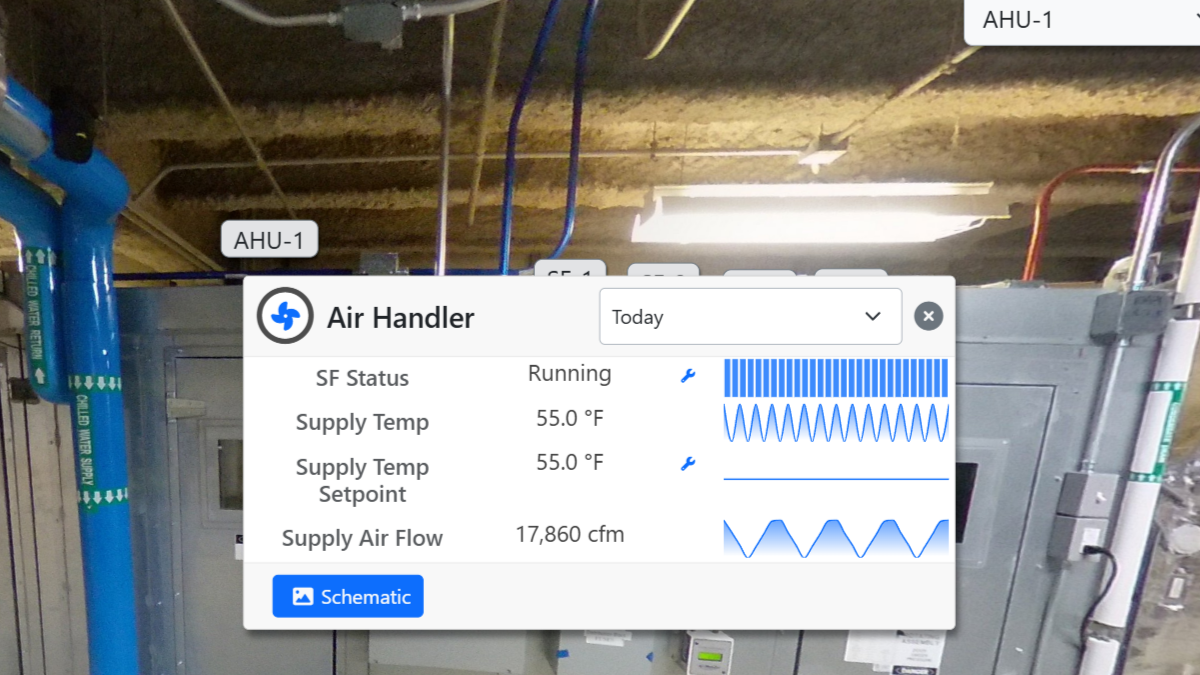

  • Card Hotspots

    Card Hotspots

    Build cards that contain Point & History Data.

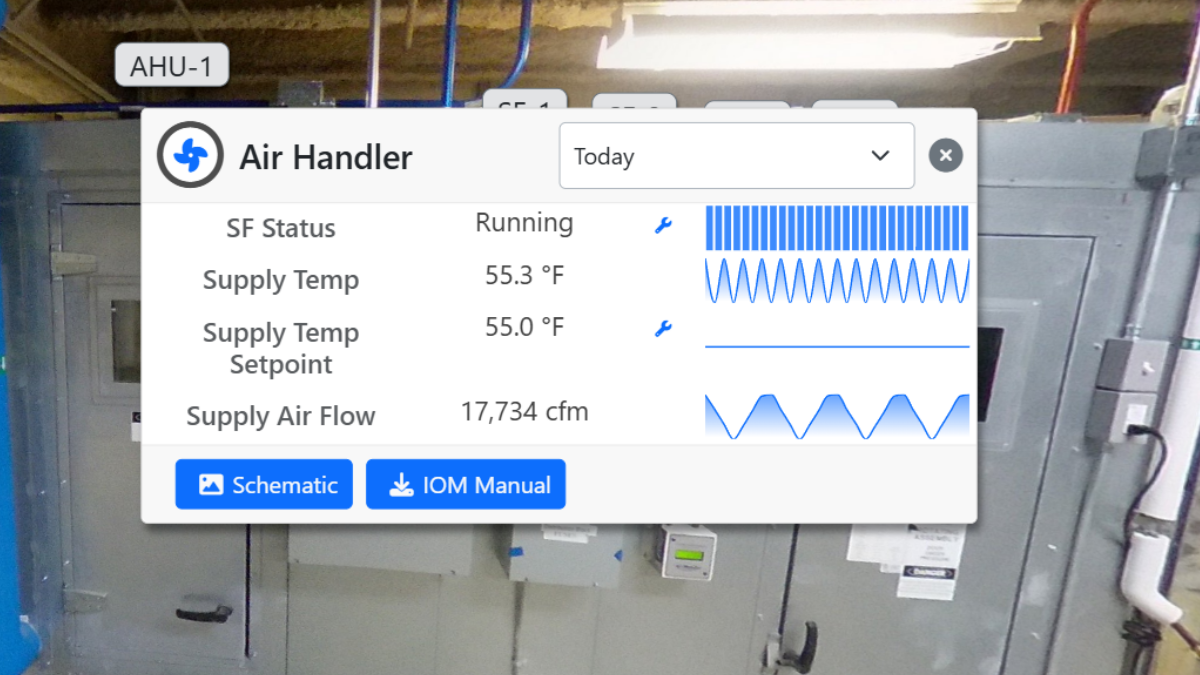

  • IOM Manuals & Documentation

    IOM Manuals and Documentation

    Easily link or download documents attached to equipment.

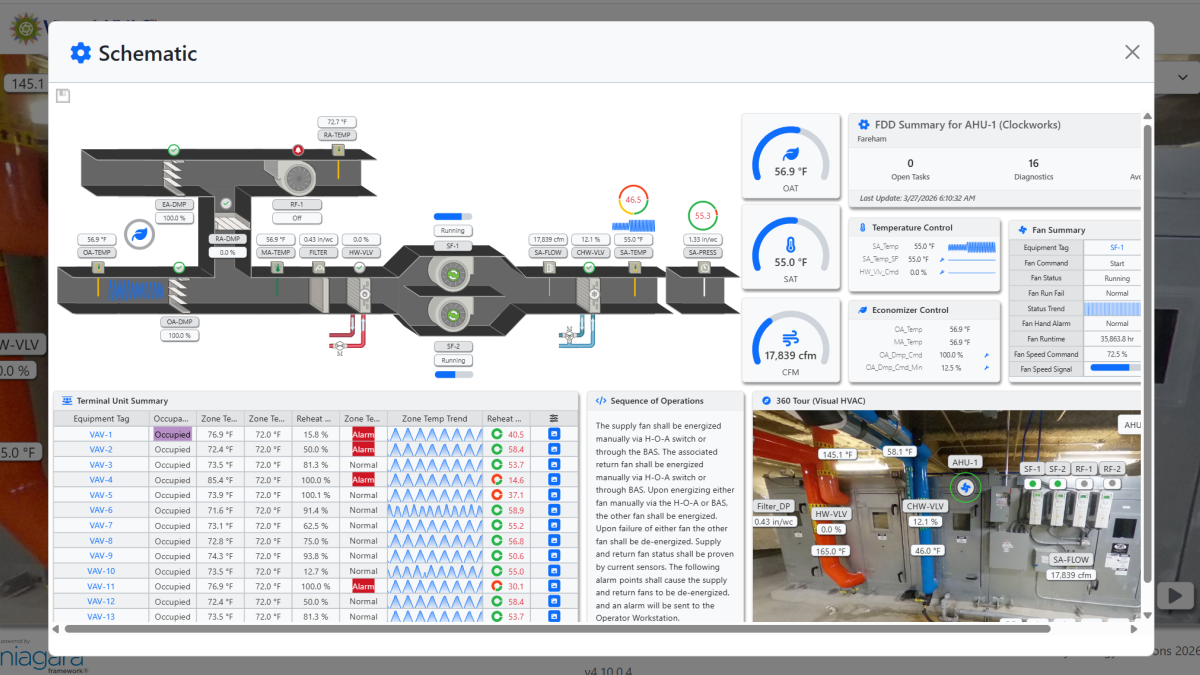

  • VisHvac_GraphicModal

    Graphic Modals

    Access BAS Graphics in the view port of the 360 tour.

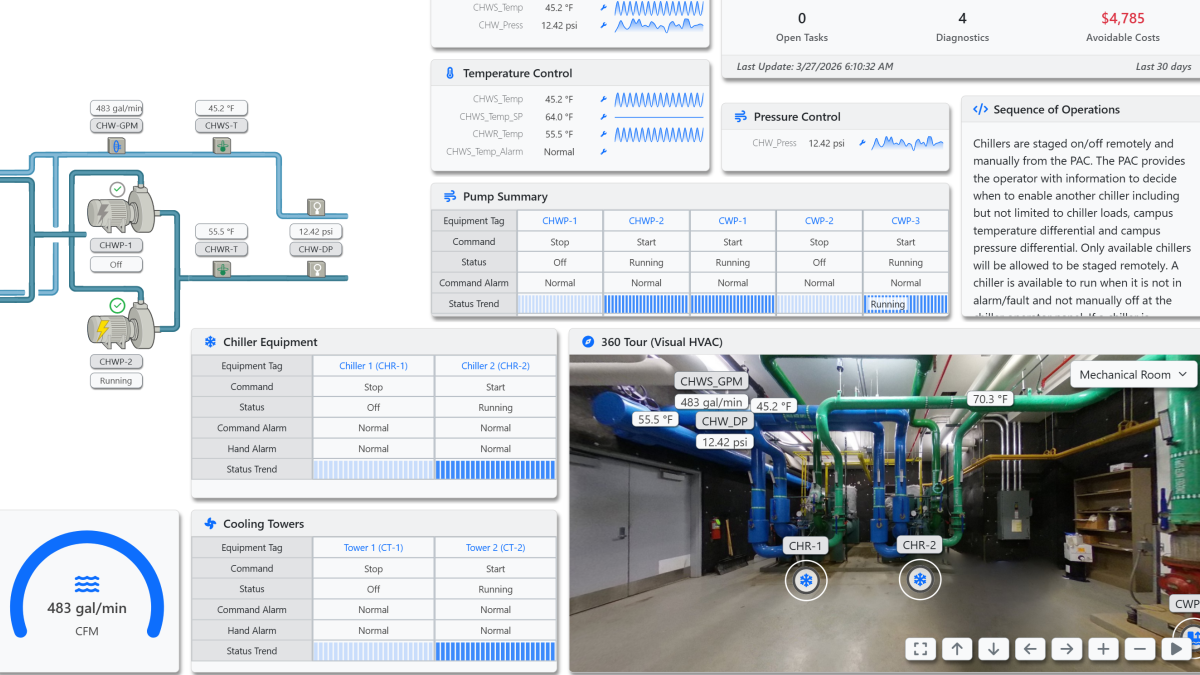

  • VisHvac_PxEmbed

    Embed in PX Graphics

    Easily drag viewport into existing graphics.

See Visual HVAC in action

Explore how an interactive 360° view of mechanical spaces connects BAS graphics to real equipment, with real-time and historical data overlays that add rich operational context.

Buy on Marketplace Request a Demo
  • Bring mechanical and building spaces to life with immersive 360° imagery
  • Overlay real-time Niagara data directly within the visual experience
  • Add documents, training resources, and reference materials where they are needed most
  • Connect users to online tools, services, and external resources
  • Embed standard PX graphics to unify data and visual context
  • Simplify setup with built-in image processing tools

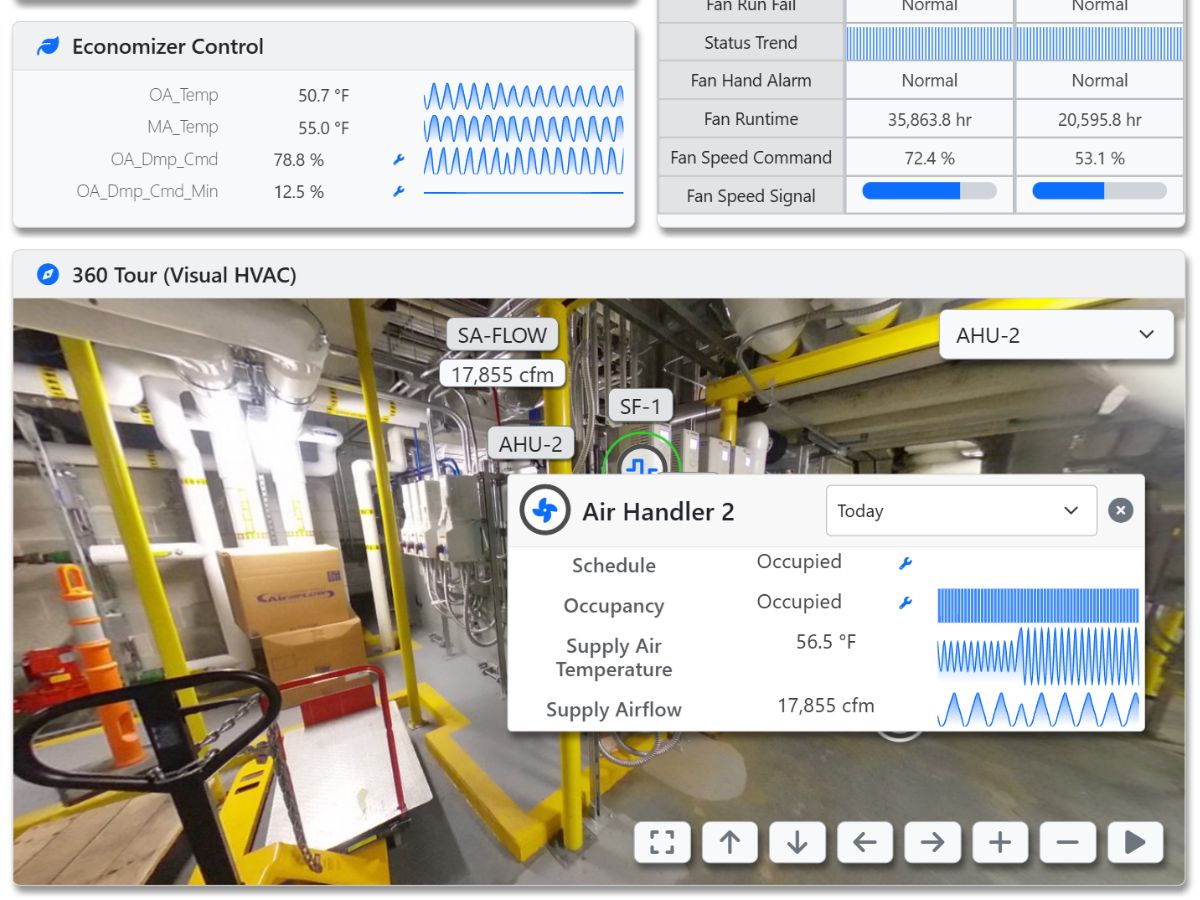

VisHvac_DataVis
